Furfural Acetone Resin F14

Details:

F14 Furfural Acetone Resin
Alias: High-temperature High-carbon-value Resin, Furan Resin

Physicochemical Properties:

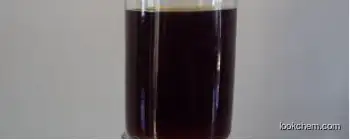

F14 furfural acetone resin is a new-type environmentally friendly high-temperature and high-carbon-value resin, a brown viscous liquid, with a residual carbon content as high as over 58 - 60%. It has excellent acid and alkali resistance and serves as an impregnating resin for composite materials with carbon fiber-reinforced carbon matrix. The produced carbon/carbon (C/C) composite material can withstand temperatures up to over 2100°C, has a density lower than 2.0g/cm³, and its strength is 5 times that of high-temperature alloys. It is an excellent lightweight high-temperature structural material. It has become an irreplaceable thermal structural material in the aerospace field, used for rocket engine nozzles, missile nose cones, and aviation brake accessories. It is light in weight (only about 1/4 of the metal matrix) and has a long service life (5 - 7 times that of the metal matrix).



This furan resin, in the presence of an acid curing agent, can be cured at room temperature into an insoluble and infusible polymer, capable of withstanding heat of 450 - 500°C. It is widely used for impregnating graphite, carbon fiber products, and manufacturing FRP (fiberglass-reinforced plastic) graphite carbon fiber components resistant to high temperatures and corrosion. Its molding methods include molding method, hand lay-up method, and filament winding molding method.



The performance of the produced carbon fiber laminated sheet is as follows: relative density 1.7, water absorption 0.1%, tensile strength 208.74MPa, bending strength 147MPa, compressive strength 348.88MPa, impact strength 186.2kJ/m², dielectric constant 7.9, volume resistivity 2×10¹?Ω·cm, dielectric loss tangent 0.013, breakdown voltage strength 17.5MV/m. Two-component (resin and curing agent).

Quality Standard Q/ssY01 - 2012

Index Name	FA - 1 Type	FA - 2 Type
Appearance	Black - brown viscous liquid	Black - brown viscous liquid
Viscosity (25°C) mPa·s	100 - 2000	40 - 100
Moisture Content, % ≤	2	1
Solid Content %	75	75
Residual Carbon Value %	50 - 60	50 - 60

Applications

It can be used to manufacture carbon fiber - reinforced structural adhesive resins, carbon/carbon composite laminates, acid - resistant and corrosion - resistant adhesives, and electrical insulation coatings. Owing to good wear resistance, it can be used for aircraft brake



accessories, automobile brake pads, and refractory materials. It is used for impregnating various porous substances such as wood, graphite, ceramics, rock wool, glass cloth, and carbon fiber materials. After curing, it becomes a high - strength, high - temperature - resistant composite material with excellent chemical resistance, and can be used to manufacture components of liquid - fuel rockets.



F14 furan resin can be used to modify epoxy resin for the protective coating of ship propellers. When added to concrete during construction, it can improve the strength and acid - alkali resistance of concrete.

Proportioning

Two - component: F14 resin and curing agent. Ratio: 100 parts of resin to 2 - 15 parts of curing agent. First, put the resin into a container, then slowly add the curing agent drop by drop while stirring evenly. The amount of curing agent added can be adjusted according to the required curing time.

Packaging, Transportation, and Protection

Packed in iron drums or plastic drums, with a net weight of 30 - 230 kg per drum. Avoid direct sunlight and store in a cool, dry place.





See More Isooctyl stearate Properties 

Hazard Identification

Classification of the substance or mixture

no data available

GHS label elements, including precautionary statements

Pictogram(s)	no data available
Signal word	no data available
Hazard statement(s)	no data available
Precautionary statement(s)
Prevention	no data available
Response	no data available
Storage	no data available
Disposal	no data available

Other hazards which do not result in classification

no data available

Handling and Storage

Precautions for safe handling

Handling in a well ventilated place. Wear suitable protective clothing. Avoid contact with skin and eyes. Avoid formation of dust and aerosols. Use non-sparking tools. Prevent fire caused by electrostatic discharge steam.

Conditions for safe storage, including any incompatibilities

Store the container tightly closed in a dry, cool and well-ventilated place. Store apart from foodstuff containers or incompatible materials.
